詳細說明
KSG3-KT-04F-M1415L,KSG3-KT-06M-M1215L,KSG3-KT-08F-M2215L,螺紋型快速接頭
KSG3-KT-06F-M1215L,KSG3-KT-06F-M1415L,KSG3-KT-06F-M1615L,KSG3-KT-06F-M1815L,
KSG3-KT-08F-M1415L,KSG3-KT-08F-M1615L,KSG3-KT-08F-M1815L,KSG3-KT-08F-M2615L,
KSG3-KT-12F-M1815L,KSG3-KT-12F-M2215,KSG3-KT-12F-M2615L,KSG3-KT-12F-M3020L,
KSG3-KT-16F-M2615L,KSG3-KT-16F-M3020L,KSG3-KT-16F-M3620L,KSG3-KT-16F-M4520L,
KSG3-KT-06F-M1615H,KSG3-KT-06F-M1815H,KSG3-KT-06F-M2015H,KSG3-KT-08F-M1815H,
KSG3-KT-08F-M2015H,KSG3-KT-08F-M2215H,KSG3-KT-08F-M2415H,KSG3-KT-08F-M3020H,
KSG3-KT-12F-M1815H,KSG3-KT-12F-M2015H,KSG3-KT-12F-M2215H,KSG3-KT-12F-M2415H,
KSG3-KT-12F-M3020H,KSG3-KT-16F-M3020H,KSG3-KT-16F-M3620H,KSG3-KT-16F-M4220H,
KSG3-KT-20F-M4220H,CCLAIR,KSG3-KT-20F-M5220H,
KSG3-KT-04M-M1415L,KSG3-KT-06M-M1415L,KSG3-KT-06M-M1615L,KSG3-KT-06M-M1815L,
KSG3-KT-08M-M1415L,KSG3-KT-08M-M1615L,KSG3-KT-08M-M1815L,KSG3-KT-08M-M2215L,
KSG3-KT-08M-M2615L,KSG3-KT-12M-M1815L,KSG3-KT-12M-M2215,KSG3-KT-12M-M2615L,
KSG3-KT-12M-M3020L,KSG3-KT-16M-M2615L,KSG3-KT-16M-M3020L,KSG3-KT-16M-M3620L,
KSG3-KT-16M-M4520L,KSG3-KT-06M-M1615H,KSG3-KT-06M-M1815H,KSG3-KT-06M-M2015H,
KSG3-KT-08M-M1815H,KSG3-KT-08M-M2015H,KSG3-KT-08M-M2215H,KSG3-KT-08M-M2415H,
KSG3-KT-08M-M3020H,KSG3-KT-12M-M1815H,KSG3-KT-12M-M2015H,KSG3-KT-12M-M2215H,
KSG3-KT-12M-M2415H,KSG3-KT-12M-M3020H,KSG3-KT-16M-M3020H,KSG3-KT-16M-M3620H,
KSG3-KT-16M-M4220H,KSG3-KT-20M-M4220H,KSG3-KT-20M-M5220H,
產品說明
KSG3-KT 規格 - 輕系列/重系列
材質：碳鋼，表面鍍環保鋅
密封件：以NBR為標準
擋圈：鐵氟龍
工作溫度：在標準NBR范圍內，承受-25℃ + 125℃的溫度。

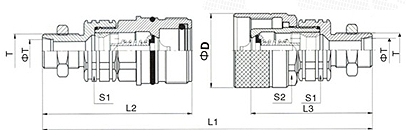

| 昌林液壓 | 國際標準 | L1 | L2 | L3 | ØD | S1 | S2 | ØT | T | 母接頭編號 | 公接頭編號 |
| 04 | 6.3 | 121.0 | 73.0 | 72.0 | 35.0 | 19.0 | 30.0 | 08L | M14×1.5 | KSG3-KT-04F-M1415L | KSG3-KT-04M-M1415L |
| 06 | 10 | 128.0 | 79.0 | 64.0 | 35.0 | 24.0 | 30.0 | 06L | M12×1.5 | KSG3-KT-06F-M1215L | KSG3-KT-06M-M1215L |
| 126.0 | 78.0 | 63.0 | 35.0 | 24.0 | 30.0 | 08L | M14×1.5 | KSG3-KT-06F-M1415L | KSG3-KT-06M-M1415L | ||
| 10L | M16×1.5 | KSG3-KT-06F-M1615L | KSG3-KT-06M-M1615L | ||||||||
| 12L | M18×1.5 | KSG3-KT-06F-M1815L | KSG3-KT-06M-M1815L | ||||||||
| 08 | 12.5 | 129.0 | 80.0 | 66.0 | 42.0 | 30.0 | 36.0 | 08L | M14×1.5 | KSG3-KT-08F-M1415L | KSG3-KT-08M-M1415L |
| 10L | M16×1.5 | KSG3-KT-08F-M1615L | KSG3-KT-08M-M1615L | ||||||||
| 12L | M18×1.5 | KSG3-KT-08F-M1815L | KSG3-KT-08M-M1815L | ||||||||
| 131.0 | 81.0 | 67.0 | 42.0 | 30.0 | 36.0 | 15L | M22×1.5 | KSG3-KT-08F-M2215L | KSG3-KT-08M-M2215L | ||
| 18L | M26×1.5 | KSG3-KT-08F-M2615L | KSG3-KT-08M-M2615L | ||||||||
| 12 | 20 | 153.0 | 96.0 | 78.0 | 48.0 | 36.0 | 41.0 | 12L | M18×1.5 | KSG3-KT-12F-M1815L | KSG3-KT-12M-M1815L |
| 155.0 | 97.0 | 79.0 | 48.0 | 36.0 | 41.0 | 15L | M22×1.5 | KSG3-KT-12F-M2215L | KSG3-KT-12M-M2215L | ||
| 18L | M26×1.5 | KSG3-KT-12F-M2615L | KSG3-KT-12M-M2615L | ||||||||
| 169.0 | 104.0 | 86.0 | 48.0 | 36.0 | 41.0 | 22L | M30×2.0 | KSG3-KT-12F-M3020L | KSG3-KT-12M-M3020L | ||
| 16 | 25 | 182.0 | 115.0 | 93.0 | 55.0 | 42.0 | 50.0 | 18L | M26×1.5 | KSG3-KT-16F-M2615L | KSG3-KT-16M-M2615L |
| 22L | M30×2.0 | KSG3-KT-16F-M3020L | KSG3-KT-16M-M3020L | ||||||||
| 28L | M36×2.0 | KSG3-KT-16F-M3620L | KSG3-KT-16M-M3620L | ||||||||
| 194.0 | 121.0 | 99.0 | 55.0 | 46.0 | 50.0 | 35L | M45×2.0 | KSG3-KT-16F-M4520L | KSG3-KT-16M-M4520L | ||
| 06 | 10 | 128.0 | 79.0 | 64.0 | 35.0 | 24.0 | 30.0 | 08H | M16×1.5 | KSG3-KT-06F-M1615H | KSG3-KT-06M-M1615H |
| 10H | M18×1.5 | KSG3-KT-06F-M1815H | KSG3-KT-06M-M1815H | ||||||||
| 12H | M20×1.5 | KSG3-KT-06F-M2015H | KSG3-KT-06M-M2015H | ||||||||
| 08 | 12.5 | 131.0 | 81.0 | 67.0 | 42.0 | 30.0 | 36.0 | 10H | M18×1.5 | KSG3-KT-08F-M1815H | KSG3-KT-08M-M1815H |
| 12H | M20×1.5 | KSG3-KT-08F-M2015H | KSG3-KT-08M-M2015H | ||||||||
| 135.0 | 83.0 | 69.0 | 42.0 | 30.0 | 36.0 | 14H | M22×1.5 | KSG3-KT-08F-M2215H | KSG3-KT-08M-M2215H | ||
| 16H | M24×1.5 | KSG3-KT-08F-M2415H | KSG3-KT-08M-M2415H | ||||||||
| 20H | M30×2.0 | KSG3-KT-08F-M3020H | KSG3-KT-08M-M3020H | ||||||||
| 12 | 20 | 155.0 | 97.0 | 79.0 | 48.0 | 36.0 | 41.0 | 10H | M18×1.5 | KSG3-KT-12F-M1815H | KSG3-KT-12M-M1815H |
| 12H | M20×1.5 | KSG3-KT-12F-M2015H | KSG3-KT-12M-M2015H | ||||||||
| 159.0 | 99.0 | 81.0 | 48.0 | 36.0 | 41.0 | 14H | M22×1.5 | KSG3-KT-12F-M2215H | KSG3-KT-12M-M2215H | ||
| 16H | M24×1.5 | KSG3-KT-12F-M2415H | KSG3-KT-12M-M2415H | ||||||||
| 20H | M30×2.0 | KSG3-KT-12F-M3020H | KSG3-KT-12M-M3020H | ||||||||
| 16 | 25 | 185.0 | 117.0 | 95.0 | 55.0 | 42.0 | 50.0 | 20H | M30×2.0 | KSG3-KT-16F-M3020H | KSG3-KT-16M-M3020H |
| 25H | M36×2.0 | KSG3-KT-16F-M3620H | KSG3-KT-16M-M3620H | ||||||||
| 194.0 | 121.0 | 99.0 | 55.0 | 46.0 | 50.0 | 30H | M42×2.0 | KSG3-KT-16F-M4220H | KSG3-KT-16M-M4220H | ||
| 20 | 31.5 | 224.0 | 133.0 | 138.0 | 80.0 | 55.0 | 75.0 | 30H | M42×2.0 | KSG3-KT-20F-M4220H | KSG3-KT-20M-M4220H |
| 38H | M52×2.0 | KSG3-KT-20F-M5220H | KSG3-KT-20M-M5220H |
| KSG3-KT 技術參數 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 保護帽和保護塞 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
KSG3-KT-08F-M1415L,KSG3-KT-08F-M1615L,KSG3-KT-08F-M1815L,KSG3-KT-08F-M2615L,
KSG3-KT-12F-M1815L,KSG3-KT-12F-M2215,KSG3-KT-12F-M2615L,KSG3-KT-12F-M3020L,
KSG3-KT-16F-M2615L,KSG3-KT-16F-M3020L,KSG3-KT-16F-M3620L,KSG3-KT-16F-M4520L,
KSG3-KT-06F-M1615H,KSG3-KT-06F-M1815H,KSG3-KT-06F-M2015H,KSG3-KT-08F-M1815H,
KSG3-KT-08F-M2015H,KSG3-KT-08F-M2215H,KSG3-KT-08F-M2415H,KSG3-KT-08F-M3020H,
KSG3-KT-12F-M1815H,KSG3-KT-12F-M2015H,KSG3-KT-12F-M2215H,KSG3-KT-12F-M2415H,
KSG3-KT-12F-M3020H,KSG3-KT-16F-M3020H,KSG3-KT-16F-M3620H,KSG3-KT-16F-M4220H,
KSG3-KT-20F-M4220H,CCLAIR,KSG3-KT-20F-M5220H,
KSG3-KT-04M-M1415L,KSG3-KT-06M-M1415L,KSG3-KT-06M-M1615L,KSG3-KT-06M-M1815L,
KSG3-KT-08M-M1415L,KSG3-KT-08M-M1615L,KSG3-KT-08M-M1815L,KSG3-KT-08M-M2215L,
KSG3-KT-08M-M2615L,KSG3-KT-12M-M1815L,KSG3-KT-12M-M2215,KSG3-KT-12M-M2615L,
KSG3-KT-12M-M3020L,KSG3-KT-16M-M2615L,KSG3-KT-16M-M3020L,KSG3-KT-16M-M3620L,
KSG3-KT-16M-M4520L,KSG3-KT-06M-M1615H,KSG3-KT-06M-M1815H,KSG3-KT-06M-M2015H,
KSG3-KT-08M-M1815H,KSG3-KT-08M-M2015H,KSG3-KT-08M-M2215H,KSG3-KT-08M-M2415H,
KSG3-KT-08M-M3020H,KSG3-KT-12M-M1815H,KSG3-KT-12M-M2015H,KSG3-KT-12M-M2215H,
KSG3-KT-12M-M2415H,KSG3-KT-12M-M3020H,KSG3-KT-16M-M3020H,KSG3-KT-16M-M3620H,
KSG3-KT-16M-M4220H,KSG3-KT-20M-M4220H,KSG3-KT-20M-M5220H,
