詳細說明
KSG3-BK60-06-06F-BSP,KSG3-BK60-08-06M-BSP,KSG3-BK60-08F-M2015,螺紋型快速接頭
KSG3-BK60-08F-M2215,KSG3-BK60-06-06M-BSP,KSG3-BK60-08-08M-BSP,
KSG3-BK60-08M-M1615,KSG3-BK60-08M-M2015,KSG3-BK60-08M-M2215,
產品說明
KSG3-BK60 規格 - 外螺紋60度
材質：碳鋼，表面鍍環保鋅
密封件：以NBR為標準
擋圈：鐵氟龍
工作溫度：在標準NBR范圍內，承受-25℃ + 125℃的溫度。

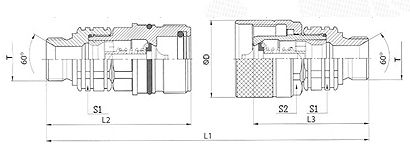

| 昌林液壓 | 國際標準 | L1 | L2 | L3 | ØD | S1 | S2 | T | 母接頭編號 | 公接頭編號 |
| 06 | 10 | 102.0 | 66.0 | 51.0 | 34.0 | 22.0 | 30.0 | 3/8" BSP | KSG3-BK60-06-06F-BSP | KSG3-BK60-06-06M-BSP |
| 08 | 12.5 | 106.0 | 68.5 | 54.5 | 42.0 | 30.0 | 36.0 | 3/8" BSP | KSG3-BK60-08-06F-BSP | KSG3-BK60-08-06M-BSP |
| 111.0 | 71.0 | 57.0 | 34.0 | 22.0 | 30.0 | 1/2" BSP | KSG3-BK60-08-08F-BSP | KSG3-BK60-08-08M-BSP | ||
| 99.0 | 65.0 | 51.0 | 42.0 | 30.0 | 36.0 | M16×1.5 | KSG3-BK60-08F-M1615 | KSG3-BK60-08M-M1615 | ||
| 109.0 | 70.0 | 56.0 | 34.0 | 22.0 | 30.0 | M20×1.5 | KSG3-BK60-08F-M2015 | KSG3-BK60-08M-M2015 | ||
| 105.0 | 68.0 | 54.0 | 42.0 | 30.0 | 36.0 | M22×1.5 | KSG3-BK60-08F-M2215 | KSG3-BK60-08M-M2215 |
| KSG3-BK60 技術參數 | |||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||
| 保護帽和保護塞 | ||||||||||||||||||
|
||||||||||||||||||
KSG3-BK60-08-06F-BSP,KSG3-BK60-08-08F-BSP,KSG3-BK60-08F-M1615,
KSG3-BK60-08F-M2215,KSG3-BK60-06-06M-BSP,KSG3-BK60-08-08M-BSP,
KSG3-BK60-08M-M1615,KSG3-BK60-08M-M2015,KSG3-BK60-08M-M2215,
