HTZS1DF02N1A06,HTZS1NF02V1BC3,HTZS1DF02E1C05,HTZS1DF02E1D16,零壓差電磁閥

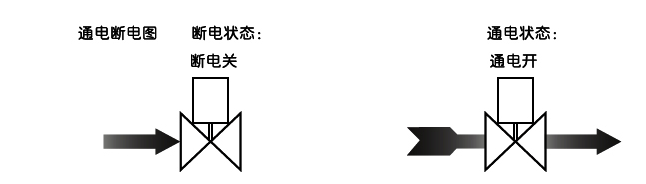

二位二通通常閉型電磁場閥，斷電關閉，通電打開閥體材質為銅，SS316不銹鋼最大耐16kgf/cm²環境溫度，0℃～65℃產品為系列化生產，體積小，流量大，適用范圍廣按閥上所標流向箭頭，可任意安裝；為增強使用壽命，最好線圈向上，水平安裝

電壓：AC220V/230V/240V/110V/24V 50/60HZ DC24V/12V +10%到-10%允許波動

DN25以下電磁閥可選配德國NASS線圈

常規備貨：AC220V/230V/240V 50/60HZ、DC24V膜片、密封件，可采用NBR、VITON、EPDM等多種，以適用不同流體的開關控制。

型號規格：

接管口徑	流量通徑mm	CV值	線圈	功率		外形尺寸長X寬X高 A x B x H	重量KG	訂貨型號以下表中電壓為220CAC 50/60HZ
			F級	VA	W
			配置	AC220V	DC24V
1/8^''	2.5	0.23	N	13	8.5	41x27x67	0.35	HTZS1NF02N1AC3
	2.5	0.23	N	13	8.5	41x27x67	0.35	HTZS1NF02E1AC3
	2.5	0.23	N	13	8.5	41x27x67	0.35	HTZS1NF02V1AC3
	3.0	0.3	N	13	8.5	41x27x67	0.35	HTZS1NF02N1A03
	3.0	0.3	N	13	8.5	41x27x67	0.35	HTZS1NF02E1A03
	3.0	0.3	N	13	8.5	41x27x67	0.35	HTZS1NF02V1A03
	5.0	0.65	D	22	13	44x28x80	0.36	HTZS1DF02N1A05
	5.0	0.65	D	22	13	44x28x80	0.36	HTZS1DF02E1A05
	5.0	0.65	D	22	13	44x28x80	0.36	HTZS1DF02V1A05
	6.0	0.9	D	22	13	44x28x80	0.36	HTZS1DF02N1A06
	6.0	0.9	D	22	13	44x28x80	0.36	HTZS1DF02E1A06
	6.0	0.9	D	22	13	44x28x80	0.36	HTZS1DF02V1A06
	9.0	1.0	D	33	32	44x28x78	0.36	HTZS1DF02N1A09
	9.0	1.0	D	33	32	44x28x78	0.36	HTZS1DF02E1A09
	9.0	1.0	D	33	32	44x28x78	0.36	HTZS1DF02V1A09
1/4^''	2.5	0.23	N	13	8.5	41x27x67	0.34	HTZS1NF02N1BC3
	2.5	0.23	N	13	8.5	41x27x67	0.34	HTZS1NF02E1BC3
	2.5	0.23	N	13	8.5	41x27x67	0.34	HTZS1NF02V1BC3
	3.0	0.3	N	13	8.5	41x27x67	0.34	HTZS1NF02N1B03
	3.0	0.3	N	13	8.5	41x27x67	0.34	HTZS1NF02E1B03
	3.0	0.3	N	13	8.5	41x27x67	0.34	HTZS1NF02V1B03
	5.0	0.65	D	22	13	44x28x80	0.35	HTZS1DF02N1B05
	5.0	0.65	D	22	13	44x28x80	0.35	HTZS1DF02E1B05
	5.0	0.65	D	22	13	44x28x80	0.35	HTZS1DF02V1B05
	6.0	0.9	D	22	13	44x28x80	0.35	HTZS1DF02N1B06
	6.0	0.9	D	22	13	44x28x80	0.35	HTZS1DF02E1B06
	6.0	0.9	D	22	13	44x28x80	0.35	HTZS1DF02V1B06
	9.0	1.1	D	32	32	44x28x78	0.35	HTZS1DF02N1B09
	9.0	1.1	D	32	32	44x28x78	0.35	HTZS1DF02E1B09
	9.0	1.1	D	32	32	44x28x78	0.35	HTZS1DF02V1B09
3/8^''	4.0	0.6	D	33	32	52.5x32.5x83	0.6	HTZS1DF02N1C04
	4.0	0.6	D	33	32	52.5x32.5x83	0.6	HTZS1DF02E1C04
	4.0	0.6	D	33	32	52.5x32.5x83	0.6	HTZS1DF02V1C04
	5.0	0.65	D	33	32	53x27x87	0.5	HTZS1DF02N1C05
	5.0	0.65	D	33	32	53x27x87	0.5	HTZS1DF02E1C05
	5.0	0.65	D	33	32	53x27x87	0.5	HTZS1DF02V1C05
	6.0	0.9	D	33	32	53x27x87	0.5	HTZS1DF02N1C06
	6.0	0.9	D	33	32	53x27x87	0.5	HTZS1DF02E1C06
	6.0	0.9	D	33	32	53x27x87	0.5	HTZS1DF02V1C06
	9.0	1.7	D	33	32	53x27x87	0.5	HTZS1DF02N1C09
	9.0	1.7	D	33	32	53x27x87	0.5	HTZS1DF02E1C09
	9.0	1.7	D	33	32	53x27x87	0.5	HTZS1DF02V1C09
	16	4.8	D	33	32	69x7x06	0.9	HTZS1DF02N1C16
	16	4.8	D	33	32	69x7x06	0.9	HTZS1DF02E1C16
	16	4.8	D	33	32	69x7x06	0.9	HTZS1DF02V1C16
	16	4.8	D	33	32	69x7x06	0.9	HTZS1DF02G1C16
1/2^''	5.0	0.65	D	33	32	53x7x7	0.49	HTZS1DF02N1D05
	5.0	0.65	D	33	32	53x7x7	0.49	HTZS1DF02E1D05
	5.0	0.65	D	33	32	53x7x7	0.49	HTZS1DF02V1D05
	6.0	0.9	D	33	32	53x7x7	0.5	HTZS1DF02N1D06
	6.0	0.9	D	33	32	53x7x7	0.5	HTZS1DF02E1D06
	6.0	0.9	D	33	32	53x7x7	0.5	HTZS1DF02V1D06
	9.0	1.7	D	33	32	53x7x7	0.5	HTZS1DF02N1D09
	9.0	1.7	D	33	32	53x7x7	0.5	HTZS1DF02E1D09
	9.0	1.7	D	33	32	53x7x7	0.5	HTZS1DF02V1D09
	16	4.8	D	33	32	69x57x106	0.9	HTZS1DF02N1D16
	16	4.8	D	33	32	69x57x106	0.9	HTZS1DF02E1D16
	16	4.8	D	33	32	69x57x106	0.9	HTZS1DF02V1D16
	16	4.8	D	33	32	69x57x106	0.9	HTZS1DF02G1D16
3/4^''	20	7.6	D	33	32	73x57x114	1.08	HTZS1DF02N1E20
	20	7.6	D	33	32	73x57x114	1.08	HTZS1DF02E1E20
	20	7.6	D	33	32	73x57x114	1.08	HTZS1DF02V1E20
	20	7.6	D	33	32	73x57x114	1.08	HTZS1DF02G1E20
1^''	25	12	D	33	32	99x77x121	1.4	HTZS1DF02N1G25
	25	12	D	33	32	99x77x121	1.4	HTZS1DF02E1G25
	25	12	D	33	32	99x77x121	1.4	HTZS1DF02V1G25
	25	12	D	33	32	99x77x121	1.4	HTZS1DF02G1G25
11/4^''	32	24	D	70	40	112x86.5x150	2.5	HTZS1DF02N1H32
	32	24	D	70	40	112x86.5x50	2.5	HTZS1DF02E1H32
	32	24	D	70	40	112x86.5x150	2.5	HTZS1DF02V1H32
11/2^''	40	29	D	70	40	123x94x160	2.9	HTZS1DF02N1J40
	40	29	D	70	40	123x94x160	2.9	HTZS1DF02E1J40
	40	29	D	70	40	123x94x160	2.9	HTZS1DF02V1J40
2^''	50	48	D	70	40	168x123x83	5.2	HTZS1DF02N1K50
	50	48	D	70	40	168x123x83	5.2	HTZS1DF02E1K50
	50	48	D	70	40	168x123x83	5.2	HTZS1DF02V1K50
法蘭 4 孔連接	25	12	D	33	32	140x115x160	2.9	HTZS1DF02N4K50
	25	12	D	33	32	140x115x160	2.9	HTZS1DF02E4K50
	25	12	D	33	32	140x115x160	2.9	HTZS1DF02V4K50
	32	24	D	70	40	152x135x215	5.1	HTZS1DF02N4F25
	32	24	D	70	40	152x135x215	5.1	HTZS1DF02E4F25
	32	24	D	70	40	152x135x215	5.1	HTZS1DF02V4F25
	40	29	D	70	40	152x145x245	6.1	HTZS1DF02N4F32
	40	29	D	70	40	152x145x245	6.1	HTZS1DF02E4F32
	40	29	D	70	40	152x145x245	6.1	HTZS1DF02V4F32
	50	48	D	70	40	195x160x250	8.2	HTZS1DF02N4F50
	50	48	D	70	40	195x160x250	8.2	HTZS1DF02E4F50
	50	48	D	70	40	195x160x250	8.2	HTZS1DF02V4F50
