點擊圖片查看原圖KSGP系列平面型快速接頭
互換標準
思圖其 VEP
應用
該系列可允許在高殘壓下進行連接和斷開，主要應用在挖掘機，油田，鉆機，井口驅動器，起重機等各種有在高殘壓下連接和斷開需求的機械設備中。
特點
KSGP系列的的快換接頭可以在高達300公斤的殘壓下進行連接斷開。螺紋型設計消除滲碳硬化及之前存在的泄露問題。其中平面型閥芯有效的防止了灰塵和水等的進入，保持接頭整潔，延長其使用壽命。
產品說明
KSGP 規格-螺紋平面型
材質：碳鋼為主體，鍍鋅鎳
閥芯：平面閥芯
密封件：以NBR為標準，F(xiàn)KM,EPDM 和 VMQ以供選擇
擋圈：鐵氟龍
工作溫度：在標準NBR范圍內，承受-25℃ + 125℃的溫度。

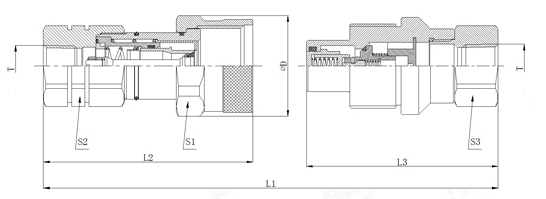

| 昌林液壓 | 國際標準 | L1 | L2 | L3 | ?D | S1 | S2 | S3 | T | 母接頭編號 | 公接頭編號 |
| 04 | 6.3 | 75.0 | 38.8 | 36.0 | 27.0 | 22.0 | 1/4" BSP? | KSGP-04F-BSP | KSGP-04M-BSP | ||
| 1/4" NPT | KSGP-04F-NPT | KSGP-04M-NPT | |||||||||
| 06 | 10 | 88.5 | 41.8 | 38.0 | 30.0 | 27.0 | 3/8" BSP? | KSGP-06F-BSP | KSGP-06M-BSP | ||
| 3/8" NPT? | KSGP-06F-NPT | KSGP-06M-NPT | |||||||||
| 08 | 12.5 | 103.0 | 49.8 | 46.0 | 36.0 | 36.0 | 1/2" BSP | KSGP-08F-BSP | KSGP-08M-BSP | ||
| 1/2" NPT | KSGP-08F-NPT | KSGP-08M-NPT | |||||||||
| 12 | 20 | 114.0 | 53.8 | 50.0 | 41.0 | 36.0 | 3/4" BSP | KSGP-12F-BSP | KSGP-12M-BSP | ||
| 3/4" NPT | KSGP-12F-NPT | KSGP-12M-NPT | |||||||||
| 16 | 25 | 135.0 | 58.8 | 55.0 | 46.0 | 46.0 | 1" BSP | KSGP-16F-BSP | KSGP-16M-BSP | ||
| 1" NPT | KSGP-16F-NPT | KSGP-16M-NPT | |||||||||
| 20 | 31.5 | 141.0 | 69.8 | 65.0 | 55.0 | 55.0 | 1-1/4" BSP | KSGP-20F-BSP | KSGP-20M-BSP | ||
| 1-1/4" NPT | KSGP-20F-NPT | KSGP-20M-NPT | |||||||||
| 24 | 40 | 92.0 | 85.0 | 65.0 | 65.0 | 1-1/2" BSP | KSGP-24F-BSP | KSGP-24M-BSP | |||
| 1-1/2" NPT? | KSGP-24F-NPT | KSGP-24M-NPT | |||||||||
| 32 | 50 | 200.0 | 90.0 | 90.0 | 2" BSP | KSGP-32F-BSP | KSGP-32M-BSP | ||||
| 2" NPT? | KSGP-32F-NPT | KSGP-32M-NPT |
| KSGP技術參數 |
| 公稱通徑 | 最大工作壓力 | 額定流量 | 最小爆破壓力 | 泄漏量 | ||||||
| 公接頭 | 母接頭 | 連接 | ||||||||
| LPH | ISO | (bar) | (l/m) | (bar) | (bar) | (bar) | (cc) | |||
| 04 | 6.3 | 600 | 12 | 1500 | 1260 | 1500 | 0.0008 | |||
| 06 | 10 | 550 | 23 | 1400 | 1000 | 1400 | 0.010 | |||
| 08 | 12.5 | 550 | 45 | 1400 | 1000 | 1400 | 0.012 | |||
| 12 | 20 | 550 | 76 | 1400 | 1000 | 1400 | 0.015 | |||
| 16 | 25 | 500 | 100 | 1250 | 1000 | 1250 | 0.020 | |||
| 20 | 31.5 | 470 | 189 | 1200 | 800 | 1200 | 0.030 | |||
| 24 | 40 | 400 | 379 | 1100 | 800 | 1100 | 0.050 | |||
| 32 | 50 | 350 | 758 | 1100 | 800 | 1100 | 0.100 | |||
| 液壓液壓 | 國際標準 | 母接頭保護塞 | 公接頭保護帽 | 顏色 | 材質 | |||
| 04 | 6.3 | KSGP-04F-Al | KSGP-04M-Al | 灰色 | 鋁 | |||
| 06 | 10 | KSGP-06F-Al | KSGP-06M-Al | 灰色 | 鋁 | |||
| 08 | 12.5 | KSGP-08F-Al | KSGP-08M-Al | 灰色 | 鋁 | |||
| 12 | 20 | KSGP-12F-Al | KSGP-12M-Al | 灰色 | 鋁 | |||
| 16 | 25 | KSGP-16F-Al | KSGP-16M-Al | 灰色 | 鋁 | |||
| 20 | 31.5 | KSGP-20F-Al | KSGP-20M-Al | 灰色 | 鋁 | |||
| 24 | 40 | KSGP-24F-Al | KSGP-24M-Al | 灰色 | 鋁 | |||
| 32 | 50 | KSGP-32F-Al | KSGP-32M-Al | 灰色 | 鋁 | |||
