點擊圖片查看原圖GLND-DN100,GLND-DN200,GLND-DN500,
特點與用途
動態扭矩傳感器采用電阻應變?cè)恚雀?、性能穩定可靠、量程范圍大、安裝使用方便。其兩端連接方式可根據現場需要分別選用法蘭連接、四方鍵連接、鍵（通槽）連接
|

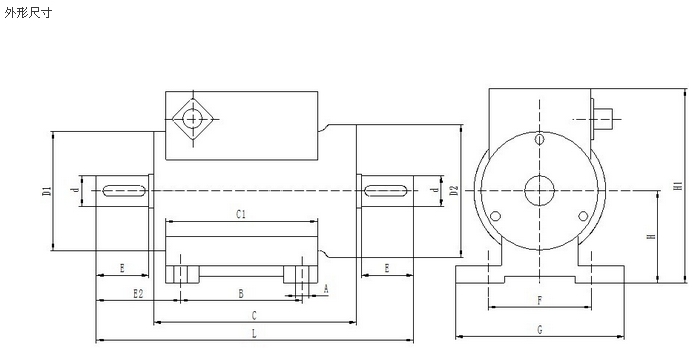

規格
(N.M)
|
Φ
d
|
Φ
D2
|
A
|
B
|
C
|
E
|
F
|
G
|
H
|
H1
|
C1
|
E2 |
L
|
鍵
b*h*l*n
|
|
5
|
18
|
78
|
8 |
72
|
122 |
31
|
61
|
100
|
54
|
116
|
90 | 50 | 188 |
6x6x25x1
|
|
10
|
18
|
78
|
8 |
72
|
122 |
31
|
61
|
100
|
54
|
116
|
90 | 50 | 188 |
6x6x25x1
|
|
20
|
18
|
78
|
8 |
72
|
122 |
31
|
61
|
100
|
54
|
116
|
90 | 50 | 188 |
6x6x25x1
|
|
30
|
18
|
78
|
8 |
72
|
122 |
31
|
61
|
100
|
54
|
116
|
90 | 50 | 188 |
6x6x25x1
|
|
50
|
18
|
78
|
8 |
72
|
122 |
31
|
61
|
100
|
54
|
116
|
90 | 50 | 188 |
6x6x25x1
|
|
100
|
18
|
78
|
8 |
72
|
122 |
31
|
61
|
100
|
54
|
116
|
90 | 50 | 188 |
6x6x25x1
|
|
200
|
28
|
92
|
8 |
72
|
123 |
41
|
61
|
100
|
60
|
125
|
90 | 59 | 209 |
8x7x35x1
|
|
500
|
38
|
96
|
8 |
72
|
124 |
55
|
61
|
100
|
65
|
135
|
90 | 74 | 238 |
10x8x50x2
|
|
1K-2K
|
48
|
106
|
12 |
69
|
126 |
70
|
78
|
120
|
68
|
144
|
90 | 90 | 270 |
14x9x65x2
|
|
5000
|
75
|
144
|
12 |
69
|
131 |
105
|
156
|
180
|
90
|
185
|
100 | 139 | 347 |
20x14x95x2
|
|
10000
|
98
|
158
|
14 |
80
|
143 |
118
|
170
|
200
|
110
|
214
|
110 | 155 | 389 |
28x16x115x2
|
| 20K-30K |
105
|
170
|
14 |
87
|
160 |
125
|
180
|
204
|
115
|
236
|
123 | 165 | 420 |
28x16x119x2
|
| 50K-60K |
150
|
240
|
14 |
89
|
163 |
123
|
184
|
230
|
153
|
309
|
123 | 165 | 419 |
40x22x115x2
|
| 100K |
170
|
270
|
16 |
95
|
188 |
200
|
194
|
240
|
169
|
340
|
140 | 252 | 598 |
45x25x195x2
|
